inputs:
input voltage range: -0.5v to 5.25v
input low voltage: -0.5v to 0.8v
input high voltage: 2.0v to 5.25v
works with 5v, 3.3v, 2.5v, 2.0v systems. may work with 1.8v but not recommended.
esd protected per ce requirements
over-voltage protection to /- 15v. not meant for continuous operation outside -0.5v to 5.25v.
input impedance: 1mohm || 10pf (typical, approximate)
error/accuracy: pulse-width measurement: /- 42ns (at 24mhz).
sample rate and depth:
24mhz. 16mhz, 12mhz, 8mhz, 4mhz, 2mhz, 1mhz, 500khz, 250khz, 200khz, 100khz, 50khz, 25khz; note that achieving the highest sample rates requires low usb latency; this may not be achievable on all computers. performance may improve with the removal of other usb devices, using a different usb host controller, or increasing the softwares process priority.
10b samples. absolute max depends on data compressibility, available ram and operating system. 10b samples assumes reasonably high compressibility.
system requirements:
windows xp (32-bit)
windows vista (32-bit or 64-bit)
windows 7 (32-bit or 64-bit)
mac os x 10.4 tiger or higher
linux: recent ubuntu, fedora, or opensuse. other distributions are likely to work but not specifically supported.
usb 2.0

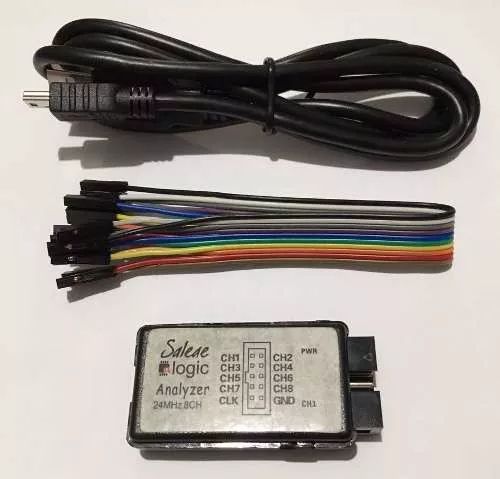

itens inclusos:
01 saleae logic (testado)
01 cabo usb (a to mini-b)
10 cabos jumper (f-f)
power:
50 ma idle (from usb, typical)
75 ma sampling (from usb, typical)
download do software:
https://www.saleae.com/downloads
input voltage range: -0.5v to 5.25v
input low voltage: -0.5v to 0.8v
input high voltage: 2.0v to 5.25v
works with 5v, 3.3v, 2.5v, 2.0v systems. may work with 1.8v but not recommended.
esd protected per ce requirements
over-voltage protection to /- 15v. not meant for continuous operation outside -0.5v to 5.25v.
input impedance: 1mohm || 10pf (typical, approximate)
error/accuracy: pulse-width measurement: /- 42ns (at 24mhz).
sample rate and depth:
24mhz. 16mhz, 12mhz, 8mhz, 4mhz, 2mhz, 1mhz, 500khz, 250khz, 200khz, 100khz, 50khz, 25khz; note that achieving the highest sample rates requires low usb latency; this may not be achievable on all computers. performance may improve with the removal of other usb devices, using a different usb host controller, or increasing the softwares process priority.
10b samples. absolute max depends on data compressibility, available ram and operating system. 10b samples assumes reasonably high compressibility.
system requirements:
windows xp (32-bit)
windows vista (32-bit or 64-bit)
windows 7 (32-bit or 64-bit)
mac os x 10.4 tiger or higher
linux: recent ubuntu, fedora, or opensuse. other distributions are likely to work but not specifically supported.
usb 2.0
itens inclusos:
01 saleae logic (testado)
01 cabo usb (a to mini-b)
10 cabos jumper (f-f)
power:
50 ma idle (from usb, typical)
75 ma sampling (from usb, typical)
download do software:
https://www.saleae.com/downloads
